Blade Bipolar Ionizer – Particle Control for Residential HVAC

What it does

The Blade floods the supply air-stream with millions of balanced positive and negative ions. These ions attach to fine dust, pollen, and mold spores, causing the particles to agglomerate into larger, heavier clusters. Larger particles are either captured by the existing filter or settle out of the breathing zone—cutting visible dust, easing allergy complaints, and boosting overall filter efficiency.

Engineered Differently — by CFD

The Blade is the only residential ionizer designed from the ground up with full Computational Fluid Dynamics (CFD) simulations—the same tool-set used in the Aerospace Industry. This virtual wind‑tunnel work delivers two crucial advantages:

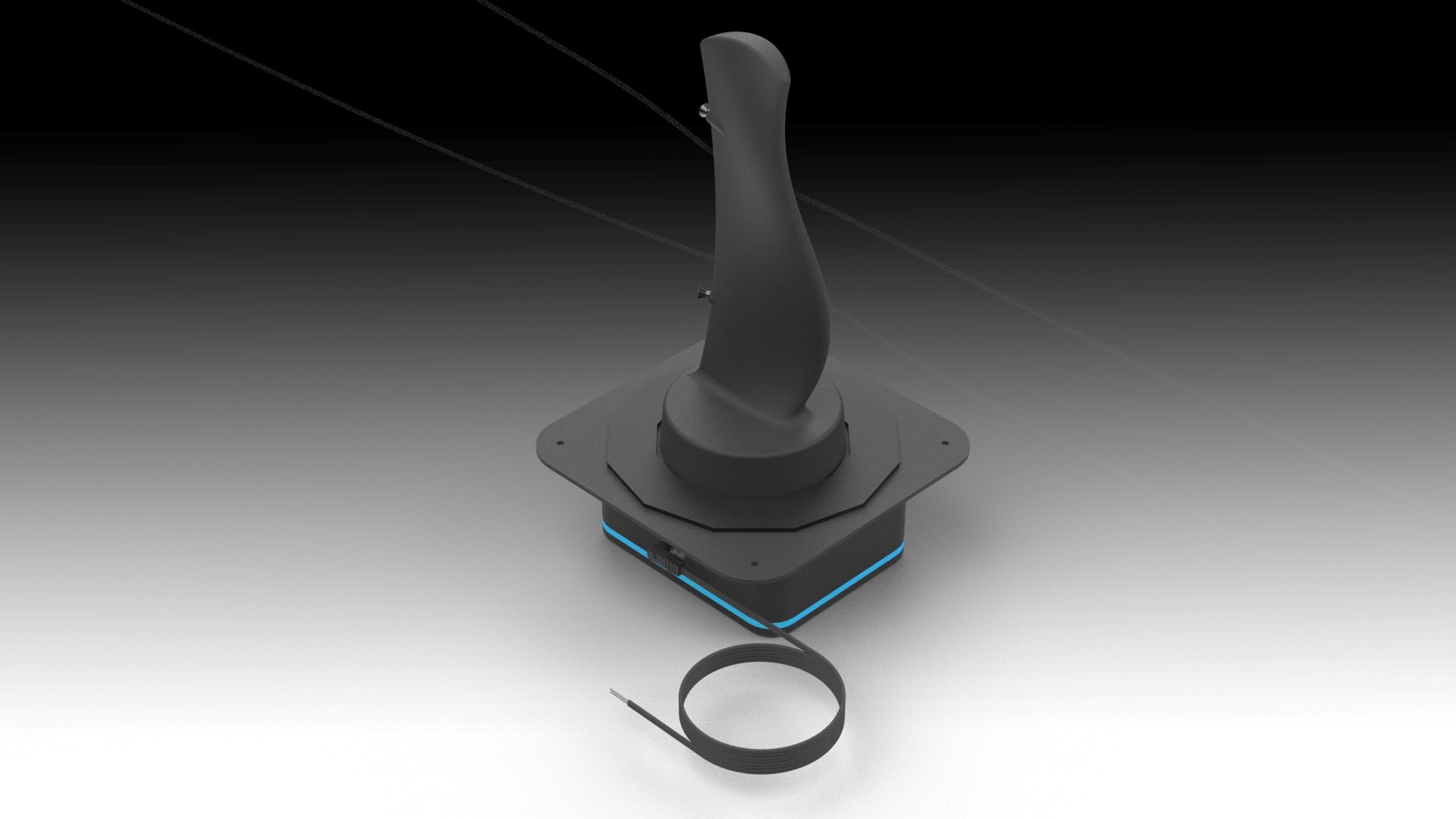

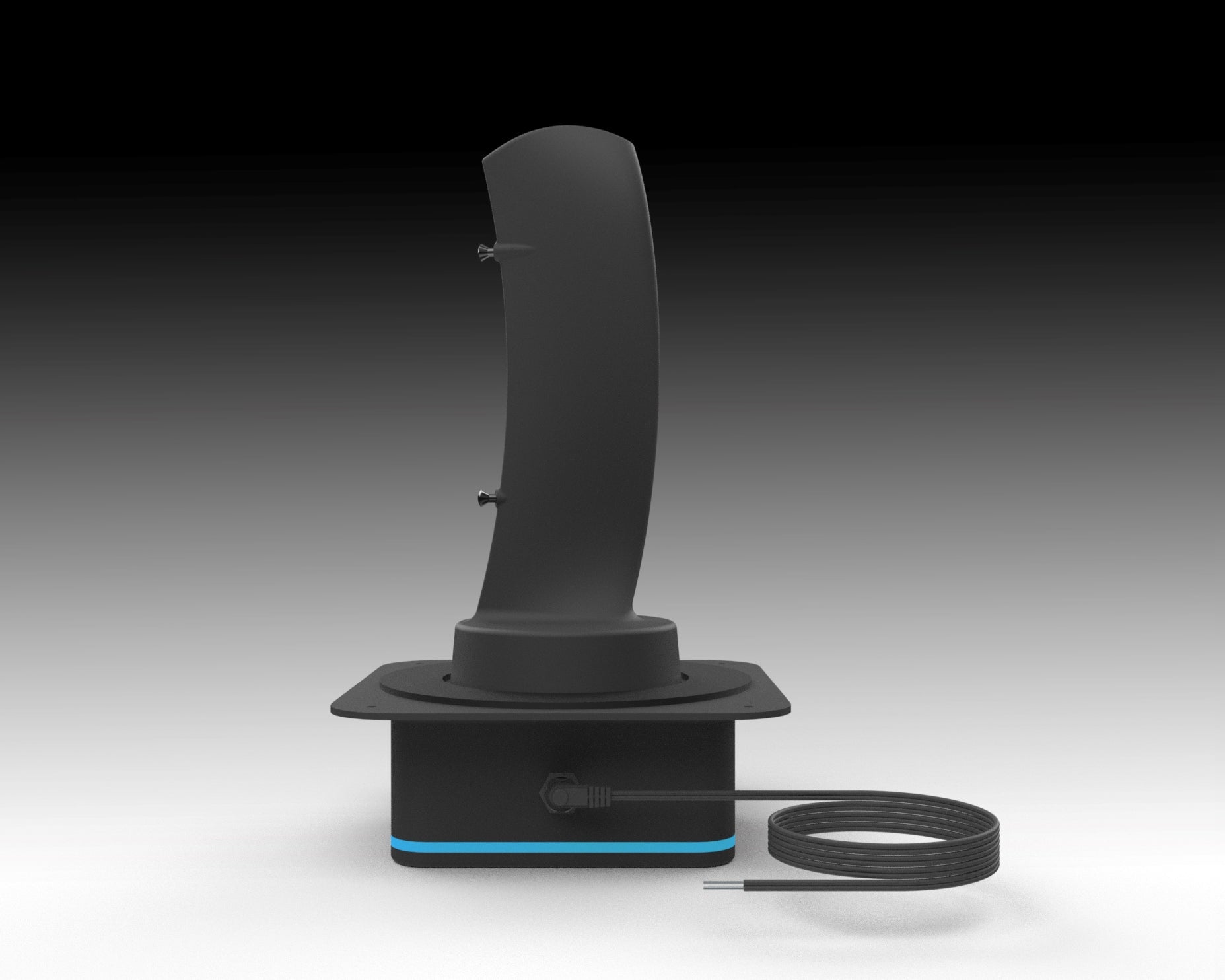

1. Zero pressure drop: its low‑profile turbine “blade” body slices into the duct without interrupting airflow, so your system’s static pressure and energy use stay unchanged.
2. Maximum ion dispersion: electrode geometry and placement were optimized in CFD to send ions evenly across the duct cross‑section for consistent particle agglomeration in every room.

Key Features

• Ion Output - >200 million ions/cm³ (balanced polarity)
• Coverage - Up to 3tons (1 ionizer per air handler); add units for larger systems

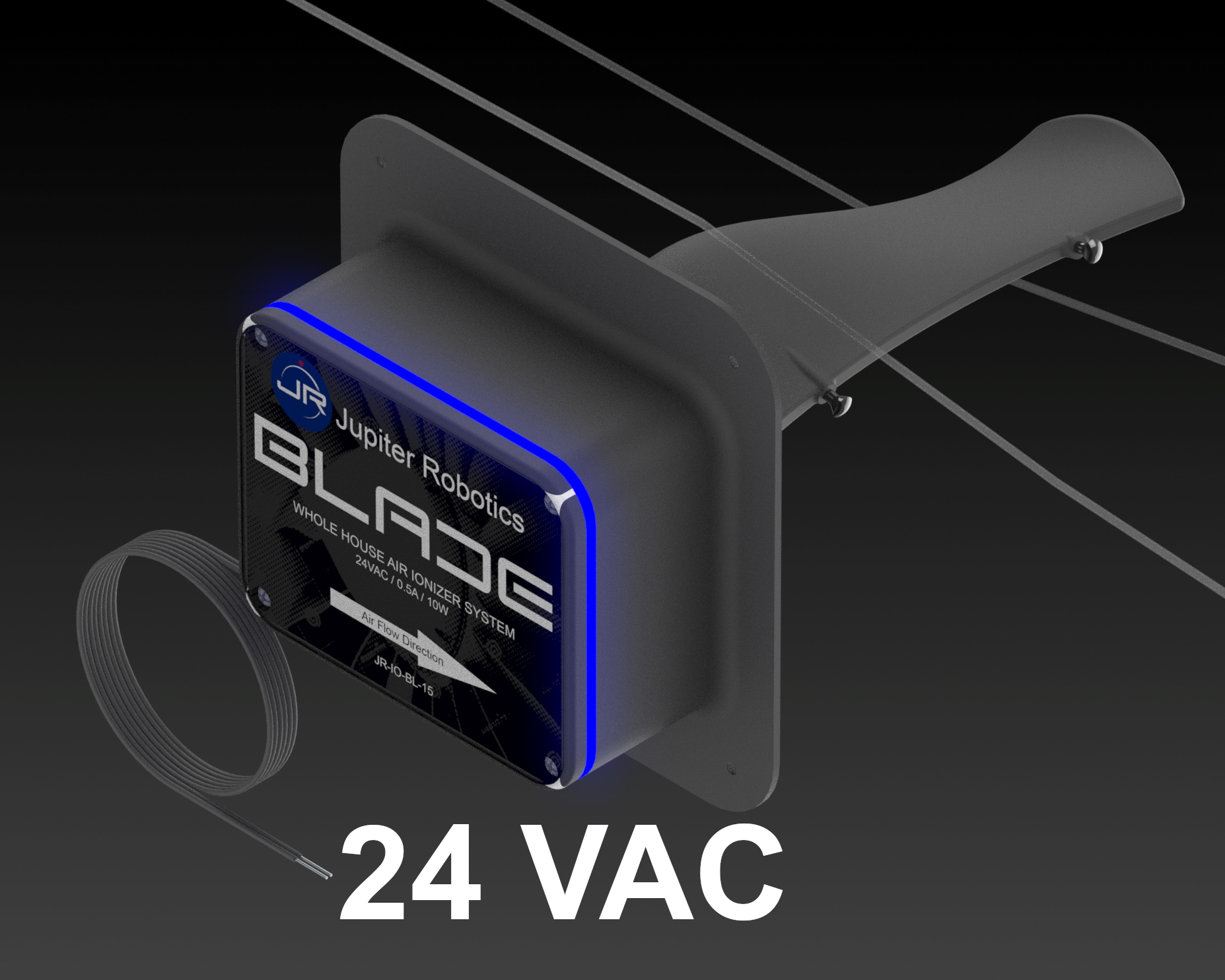

• Power - 24 VAC, 3 VA

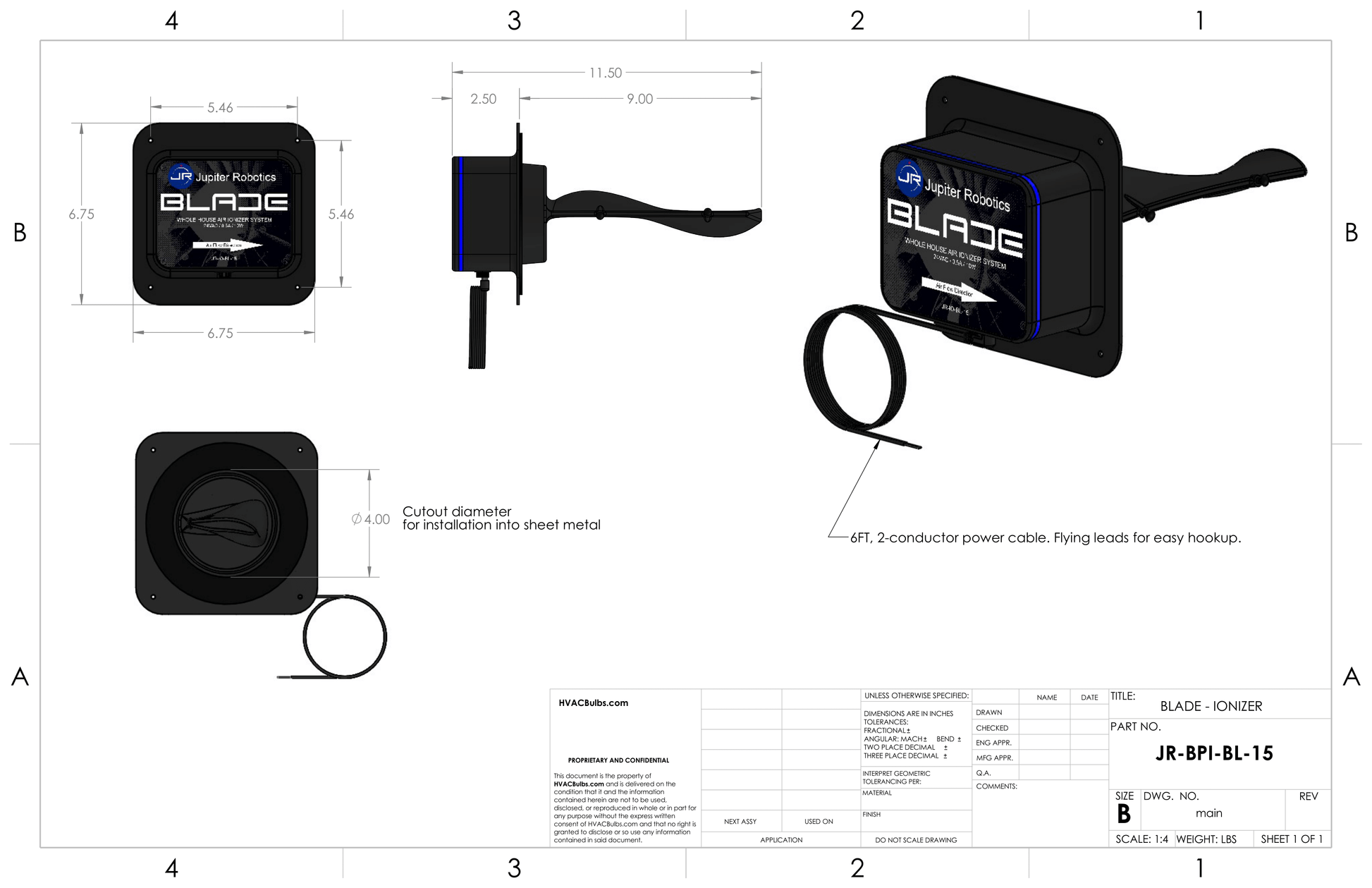

• Mounting - Low‑profile “blade” inserts through a 4in. duct cut‑out; four self‑drilling screws secure the flange
• Maintenance - None, self-cleaning design
• Certifications - UL2998 compliant (No Ozone)
• Warranty - 5 Years

Benefits You’ll Notice

• Dust Reduction – Less fine dust settling on furniture and HVAC coils.
• Increased Filter Efficiency - Agglomerated particles are trapped by the filter instead of passing through, improving MERV‑rated performance.
• Low Energy Consumption - Consumes only 3 Watts
• Quiet Operation - Produces no noise

Upgrade your HVAC in one easy step.

The Blade pairs perfectly with our UV‑C coil lamps for a comprehensive air‑quality solution — for controlling particulates, biofilm and microbes.
